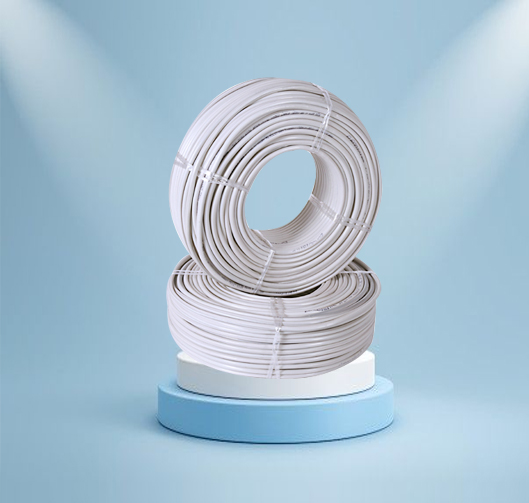

Euro digital co-axial has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield with an insulating outer sheath or jacket. It is used for Cable for CATV Applications.

PHYSICAL FOAMING COAXIAL CABLE FOR CATV



RG59  (Dia.mm)

RG6 (Dia.mm)

RG7 (Dia.mm)

RG11 (Dia.mm)

Center Conductor (CU)

0.81

1.02

1.30

1.63

Dielectric

3.66

4.57

5.72

7.11

First Shield (Tape)

3.84

4.75

5.89

7.29

Jacket

6.10

6.91

8.08

10.03

Steel  Messanger  (Dual)

1.30

1.30

1.83

1.83



1.83

1.83

2.72

2.72

Minimum Breaking

Dia. 1.30 82Kgf

Dia. 1.30 82Kgf

Dia. 1.83 166Kgf

Dia. 1.83 166Kgf

Strength of Messenger

       Dia. 1.83 166Kgf

Dia. 1.83 166Kgf

Dia. 2.72 818Kgf

Dia. 2.72 818Kgf

Impedance (Ohms)

Capacitance (PF/M)

54

52

52

52

Echo Loss  (>dB)



VHF



20



UHF



18

5MHz

2.82

1.90

1.54

1.25

55MHz

6.75

5.25

4.10

3.15

300MHz

14.60

11.64

9.25

7.38

350MHz

15.75

12.63

10.01

7.94

400MHz

16.73

13.61

10.73

8.53

450MHz

17.72

14.43

11.35

9.02

500MHz

18.70

15.09

12.04

9.51

560MHz

19.52

16.08

12.63

9.97

600MHz

20.87

16.73

13.28

10.43

865MHz

24.67

20.01

16.17

13.05

1000MHz

26.64

21.49

17.45

14.27
